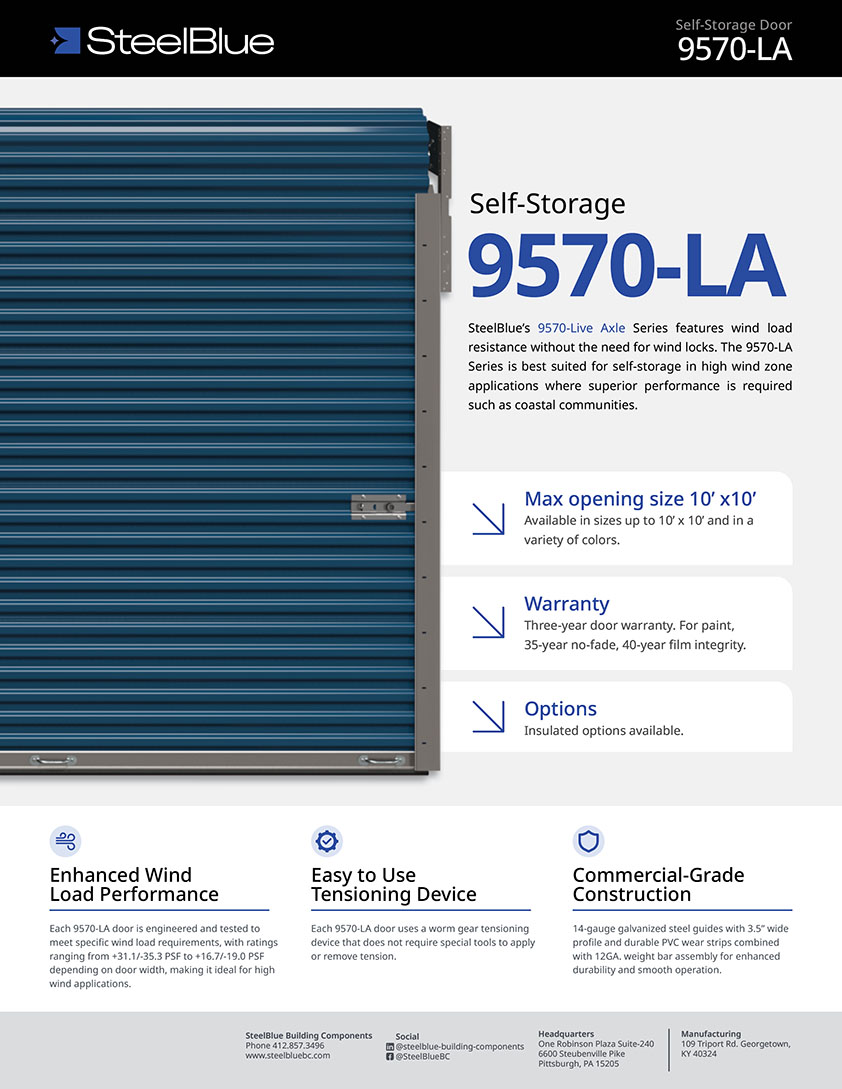

9570-LA Series - Wind Load Rated Steel Roll Up Door
The 9570-Live Axle Series wind-rated steel roll up door is specifically engineered to meet the demanding requirements of storage facilities in higher wind zones and challenging environmental conditions. Combining enhanced durability with proven performance, these storage unit roll up doors feature panels that are expertly seamed together using the highest quality seaming process, ensuring maximum strength and reliability with the industry-standard seamed panel profile. Each 9570-LA Series roll up door is built with 14-gauge galvanized steel guides and upgraded components designed to withstand severe weather conditions. Featuring durable PVC wear strips, removable head stops, and an integrated weight bar system, the 9570-LA Series delivers reliable operation and lasting performance essential for protecting stored belongings in areas prone to high winds and extreme weather conditions, especially for coastal communities.
Color options: Siliconized Polyester
Features
- Industry standard profile, 26-gauge, Grade 80 prepainted steel
- 5/8” ribbed corrugation
- Max opening size 10' x 10'
- Curtain width = opening width + 7"
- 6063-T6 Aluminum
- 1-1/2 x 2 12GA galvanized weight bar
- Replaceable T-bulb astragal
- 14-gauge galvanized steel
- 3.5" wide guide profile
- Pre-punched holes for anchors, slide latch, and head-stop attachment
- Durable PVC guide strips provide easy, quiet operation
- 12-gauge head stops
- 12-gauge reinforced galvanized brackets
- Shielded radial bearings for smooth operation
- Spring/counterbalance assembly with worm drive tensioner system
- 4-bolt latch
- For proper exterior door installation, a ½” deep rain lip must be formed in the concrete slab extending a minimum of 4” from the interior face of the jamb.
- Each 9570-LA door is engineered and tested to meet specific wind load requirements, with ratings ranging from +31.1/-35.3 PSF to +16.7/-19.0 PSF depending on door width, making it ideal for high wind applications.
- Optional insulated roll-up doors are available for the 9570 Series. This insulation primarily serves as a radiant barrier that helps reduce condensation in humid environments and is especially beneficial for doors exposed to direct sunlight. The insulation can significantly reduce interior door surface temperatures in hot conditions. Please note that while insulation provides these benefits, it doesn't create a fully climate-controlled environment on its own, as air gaps around the guides are necessary for proper door operation.
FAQ
A wind-rated roll up door is specifically engineered and tested to meet specific wind load pressures to withstand high wind speeds and extreme weather conditions. These doors comply with building codes in high wind zones, utilizing features like reinforced components, such as galvanized steel guides and seamed panel profiles for enhanced durability.
Coastal areas are prone to strong winds, hurricanes, and other severe weather conditions that can cause extensive damage to structures. Wind-rated roll up doors, like the 9570-LA Series, are designed to safeguard storage units and belongings by providing reliable protection against these environmental challenges. Their durability and efficient operation make them ideal for harsh coastal environments.
The 9570-LA Series is engineered to meet wind load ratings from +31.1/-35.3 PSF to +16.7/-19.0 PSF, depending on door width. These ratings ensure the door can withstand pressures associated with high wind events, helping to meet stringent building codes in wind-prone areas.
Yes, optional insulation is available for the 9570 Series roll up door. The insulated option reduces condensation in humid environments and lessens interior surface temperatures when exposed to direct sunlight. However, it does not create a fully climate-controlled environment due to necessary air gaps for door operation.
Properties in areas classified as high wind zones, such as regions prone to hurricanes, tornadoes, or severe storms, often require wind-rated roll up doors to meet local building codes. You can check your area's wind load requirements in local code regulations or consult with a professional installer to determine if a wind-rated door like the 9570-LA Series is necessary for your property’s safety and compliance.
