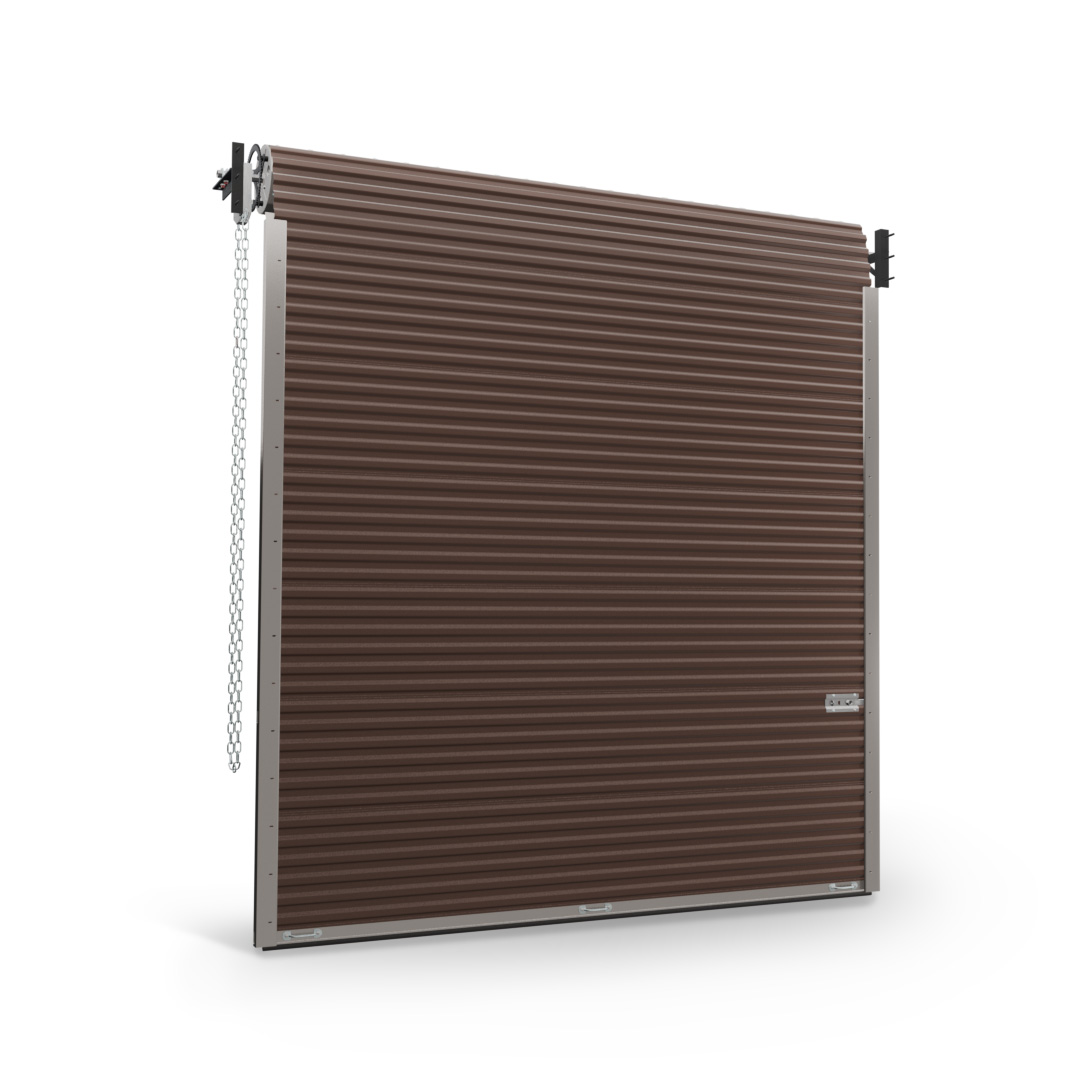

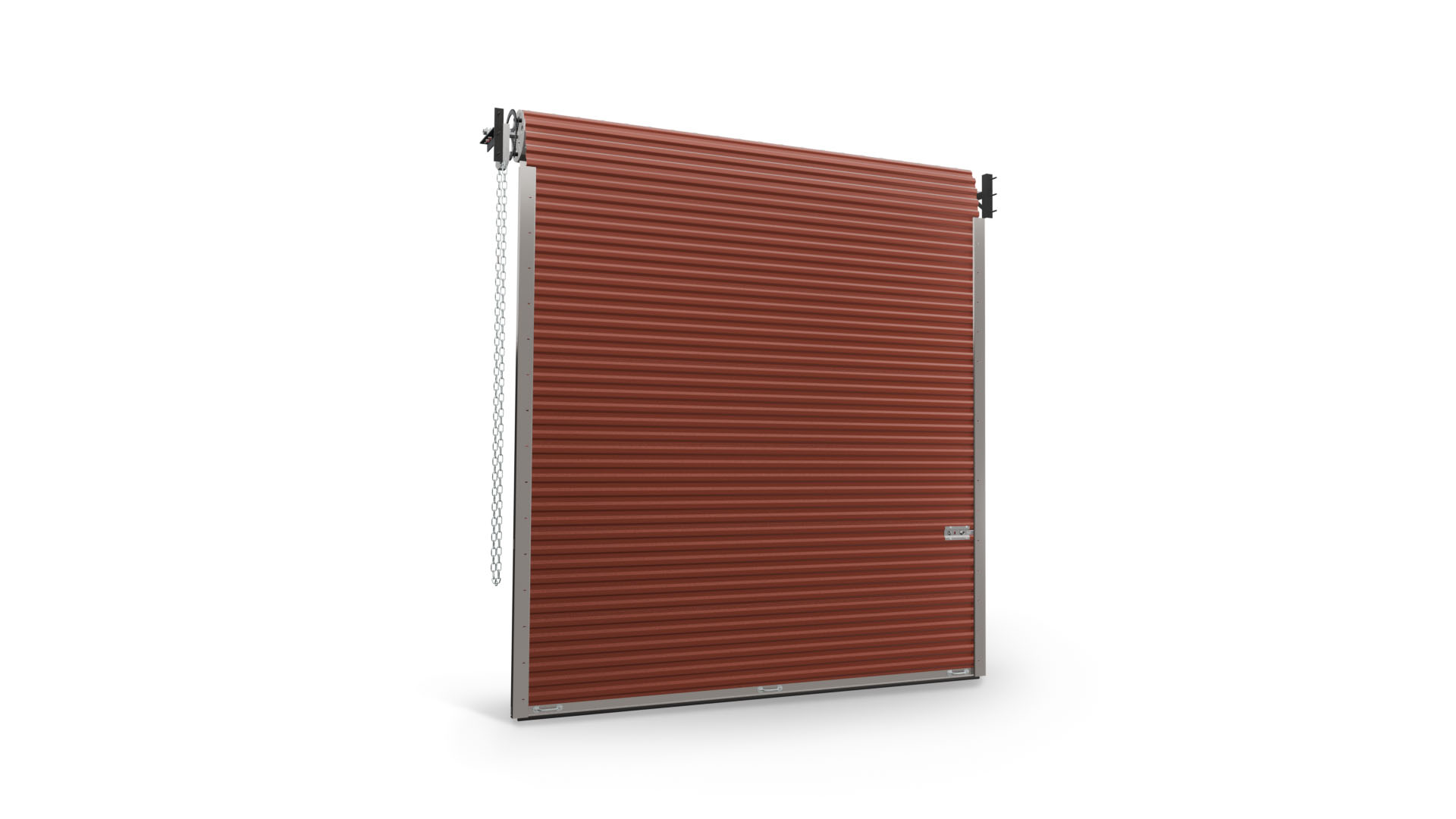

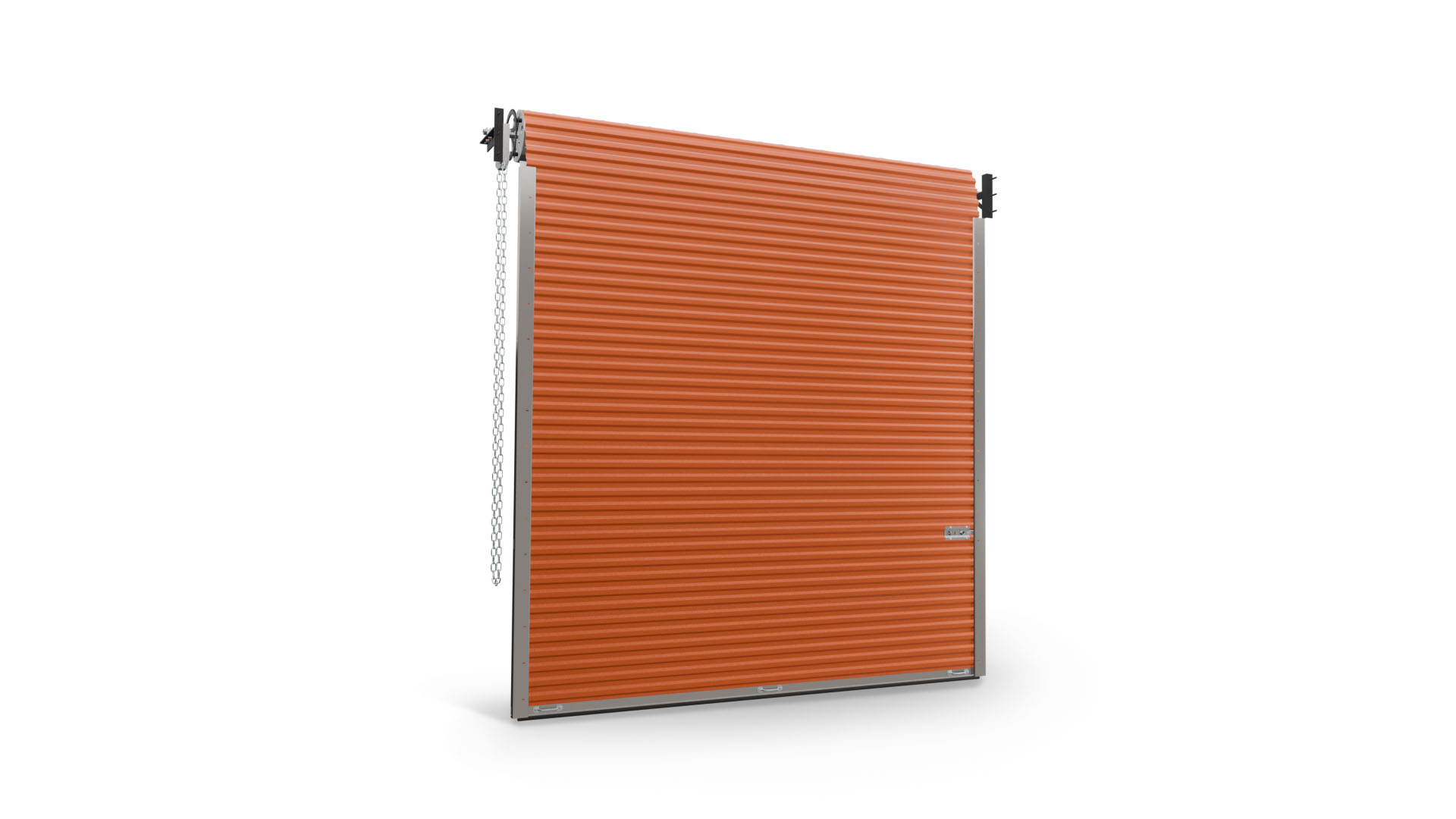

1250 Series - Heavy-Duty Wind Load Rated Roll Up Sheet Door with Wind Locks

The 1250 Series roll up sheet door is designed for commercial and industrial facilities in severe wind zones that require both large openings and maximum wind protection. The 1250 Series combines heavy-duty construction with an integrated wind lock system that meets most building code requirements in hurricane-prone and extreme wind areas. Each 1250 Series door uses J-clip wind locks and reinforced guide system engineered for openings up to 14' wide, delivering the highest level of wind resistance for marinas, warehouses, and recreational facilities in exposed coastal locations. The result is code-compliant protection for commercial operations where both door size and severe weather resistance are required.

Color options: Siliconized Polyester

Download color chart
Select a color option below:
Polar White
Polar White
High Gloss White
Gallery Blue
Rustic Red
Ivy Green
Fern Green
Hawaiian Blue
Light Stone
Burnished Slate
Saddle Tan
Silhouette Gray
Evergreen
Koko Brown
Crimson Red
Sunset Orange
Marine Green
Safety Yellow
Teal
Tangerine
Dark Teal
Maroon
Patriot Red
Colony Green
Wasabi Green
Polar White
Polar White
High Gloss White
Gallery Blue
Rustic Red
Ivy Green
Fern Green
Hawaiian Blue
Light Stone
Burnished Slate
Saddle Tan
Silhouette Gray
Evergreen
Koko Brown
Crimson Red
Sunset Orange
Marine Green
Safety Yellow
Teal
Tangerine
Dark Teal
Maroon
Patriot Red
Colony Green
Wasabi Green
Request a QuoteGet Product Details

Features

Curtain
  • Industry standard profile, 26-gauge, Grade 80 prepainted steel
    5/8" ribbed corrugation
  • 12-gauge J-clips installed every 6-1/2" for windbar engagement
  • Max opening size 14' x 14'
  • Curtain width = opening width + 5"
Commercial-Grade Construction
14-gauge galvanized steel guides with 3.5" wide profile and durable PVC wear strips combined with 12-gauge windbar assembly for enhanced durability and smooth operation. Dead axle configuration provides reliable performance for larger commercial openings.
Bottom Bar
  • 6063-T6 Aluminum
  • 1-1/2 x 2 12GA galvanized weight bar
  • Replaceable T-bulb astragal
Guide System
  • 14-gauge galvanized steel
  • 3.5" wide guide profile
  • Pre-punched holes for anchors, slide latch, and head-stop attachment
  • Durable PVC guide strips provide easy, quiet operation
  • Integrated 12-gauge windbar for J-clip engagement
Hardware
  • 12-gauge head stops
  • 1/4" commercial T-brackets
  • 12" diameter 16-gauge drum
  • 1-5/16" OD 12-gauge axle
  • Dead axle configuration
  • 4-bolt latch
Enhanced Wind Load Performance
Each 1250 door is engineered and tested to meet specific wind load requirements, with ratings ranging from +53.9/-61 PSF to +15.9/-18 PSF depending on door width, making it ideal for high wind applications.
J-Clip Wind Lock System
Each 1250 door features 12-gauge J-clips installed every 6-1/2", working in conjunction with the integrated 12-gauge windbar system for superior wind resistance without special tools or complicated installation.
Optional lifting mechanisms
  • 8:1 chain hoist
  • Motor
Minimum Clearance
For proper exterior door installation, a 1-1/2" deep rain lip must be formed in the concrete slab extending a minimum of 4-1/2" from the interior face of the jamb.
Optional Insulation
Optional insulated roll-up doors are available for the 1250 Series. This insulation primarily serves as a radiant barrier that helps reduce condensation in humid environments and is especially beneficial for doors exposed to direct sunlight. The insulation reduces interior door surface temperatures in hot conditions. Please note that while insulation provides these benefits, it doesn't create a fully climate-controlled environment on its own, as air gaps around the guides are necessary for proper door operation.

FAQs

What is the maximum opening size for the 1250 Series Heavy Duty Commercial Roll Up Door?

The 1250 Series heavy duty commercial roll up door has a maximum opening size of 14 feet by 14 feet, making it ideal for a variety of applications, including storage for RVs, boats, and other larger items.

What materials are used in the construction of the 1250 Series roll up door?

This steel roll up door is constructed from 26-gauge, Grade 80 prepainted steel, ensuring durability and reliability. It also features a 6063-T6 aluminum bottom bar and a 14-gauge galvanized steel guide system for superior performance and longevity.

Is the 1250 Series roll up door easy to install?

Yes, the 1250 Series roll up door is designed for straightforward installation, however, we do recommend working with a trained door system technician or installer. The guide system includes pre-punched holes for effortless anchoring.

What optional lifting mechanisms are available for the 1250 Series roll up door?

Optional lifting mechanisms include a 4:1 chain hoist, 8:1 chain hoist, and motorized options, allowing for customizable and convenient operation depending on your specific needs.

Can the 1250 Series roll up door withstand outdoor elements?

Absolutely. Built from robust, high-quality steel and designed with weather resistance in mind, the 1250 Series roll up door can handle various environmental conditions, ensuring your belongings are kept secure and protected year-round.

What types of applications are best suited for the 1250 Series roll up door?

The 1250 Series is highly versatile and ideal for both personal and commercial use. Common applications include garages, marinas, workshops, and storage facilities for large vehicles like RVs and boats. Its lightweight yet durable design ensures ease of use and reliable performance.
